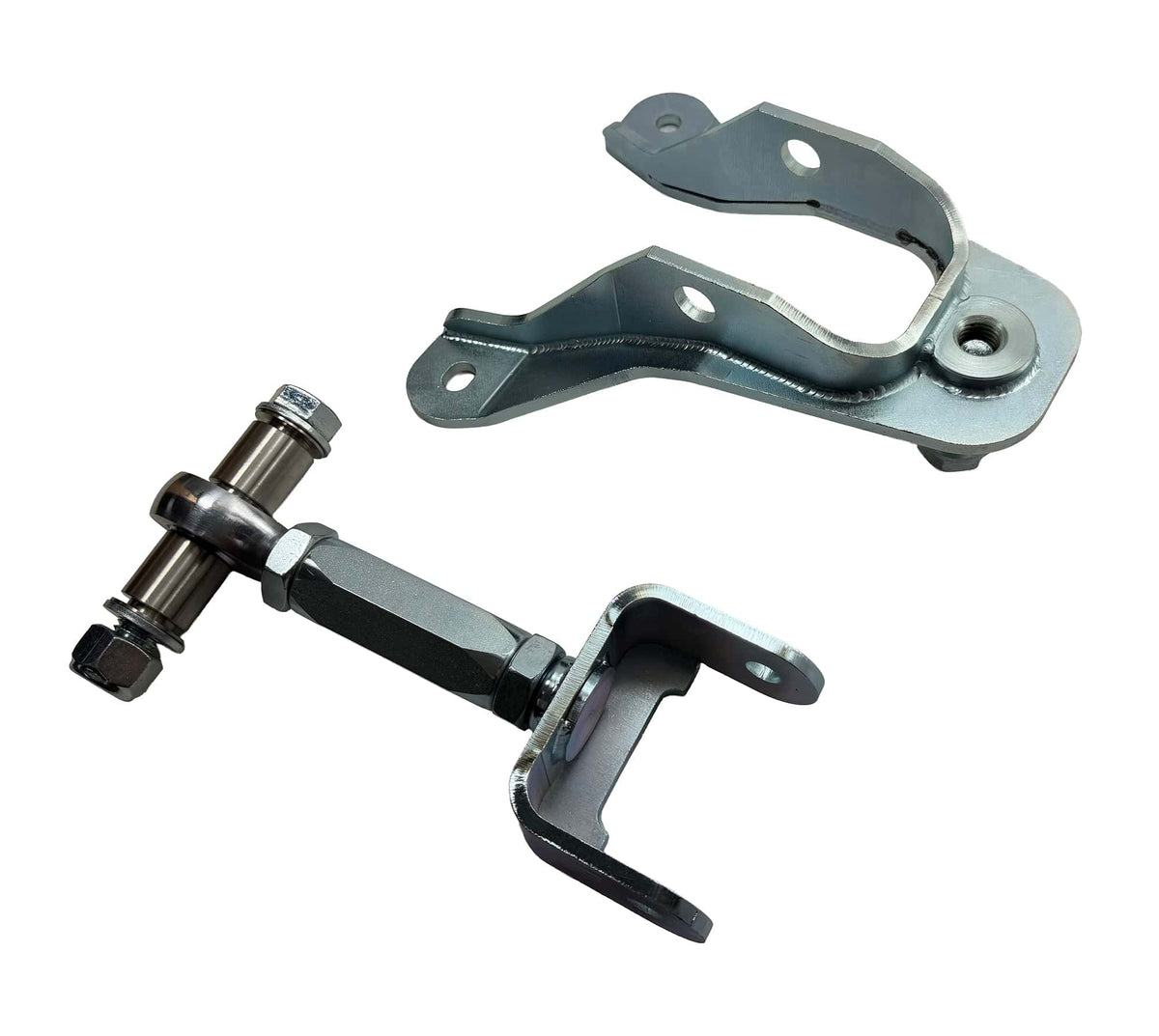

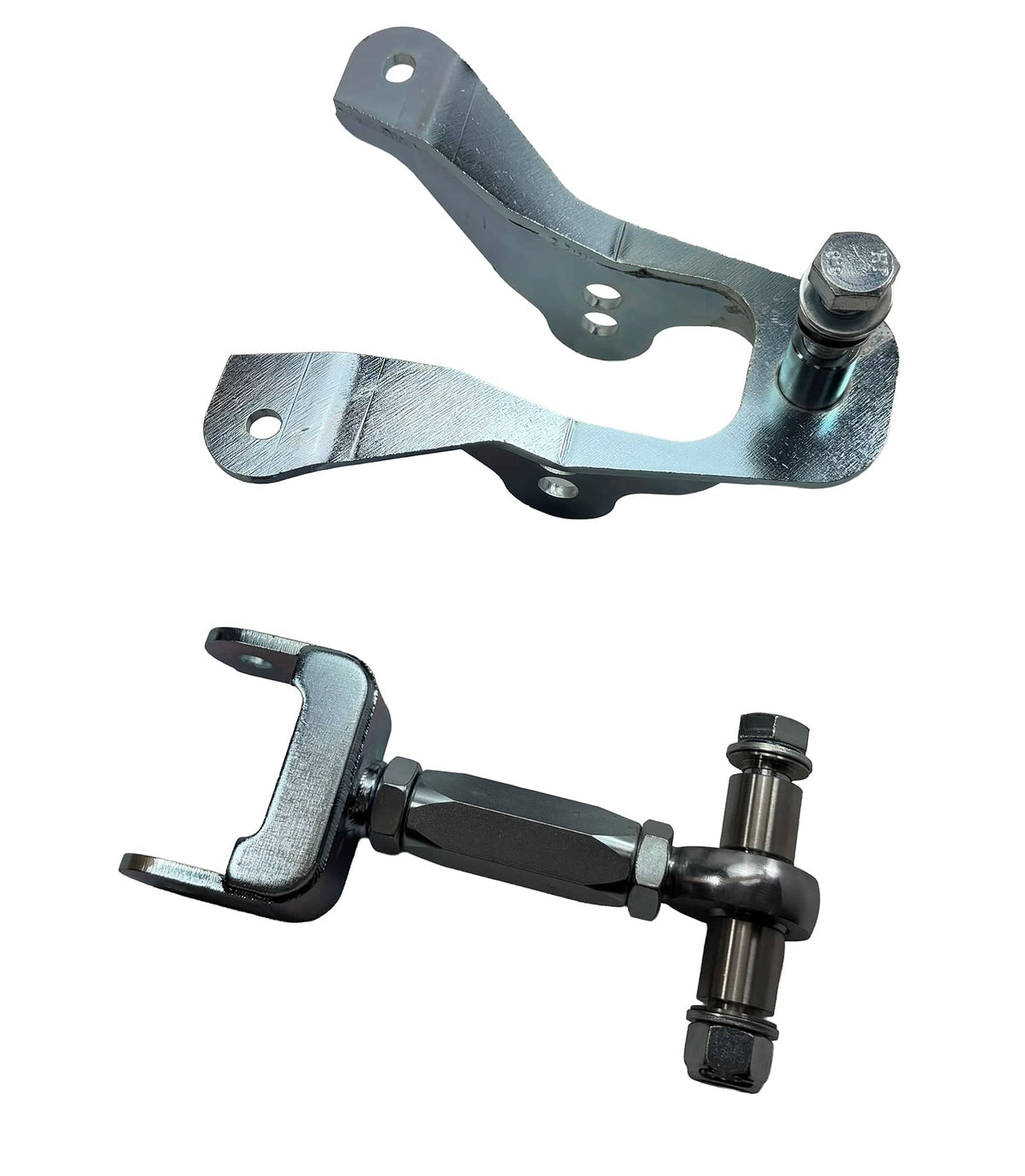

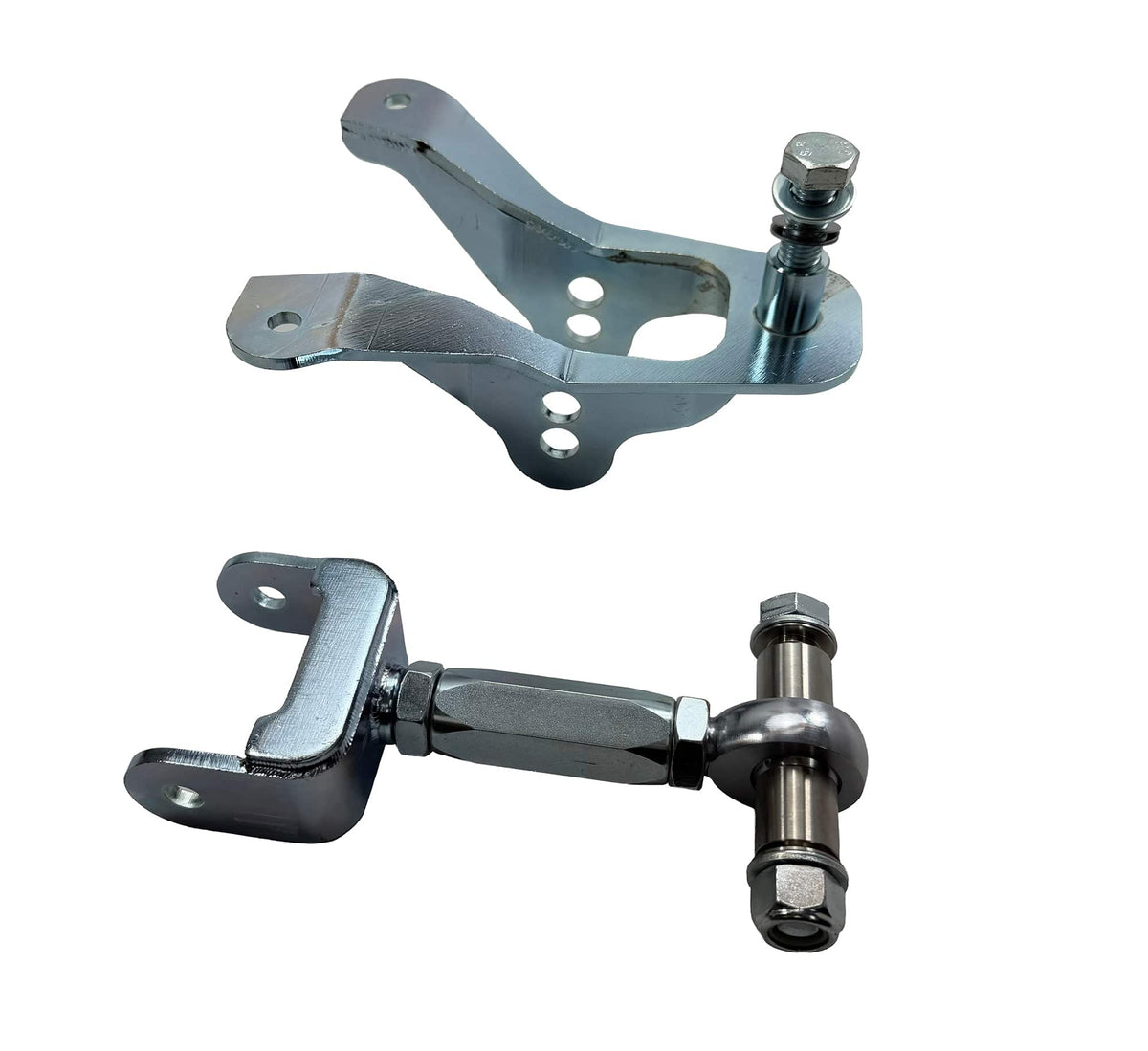

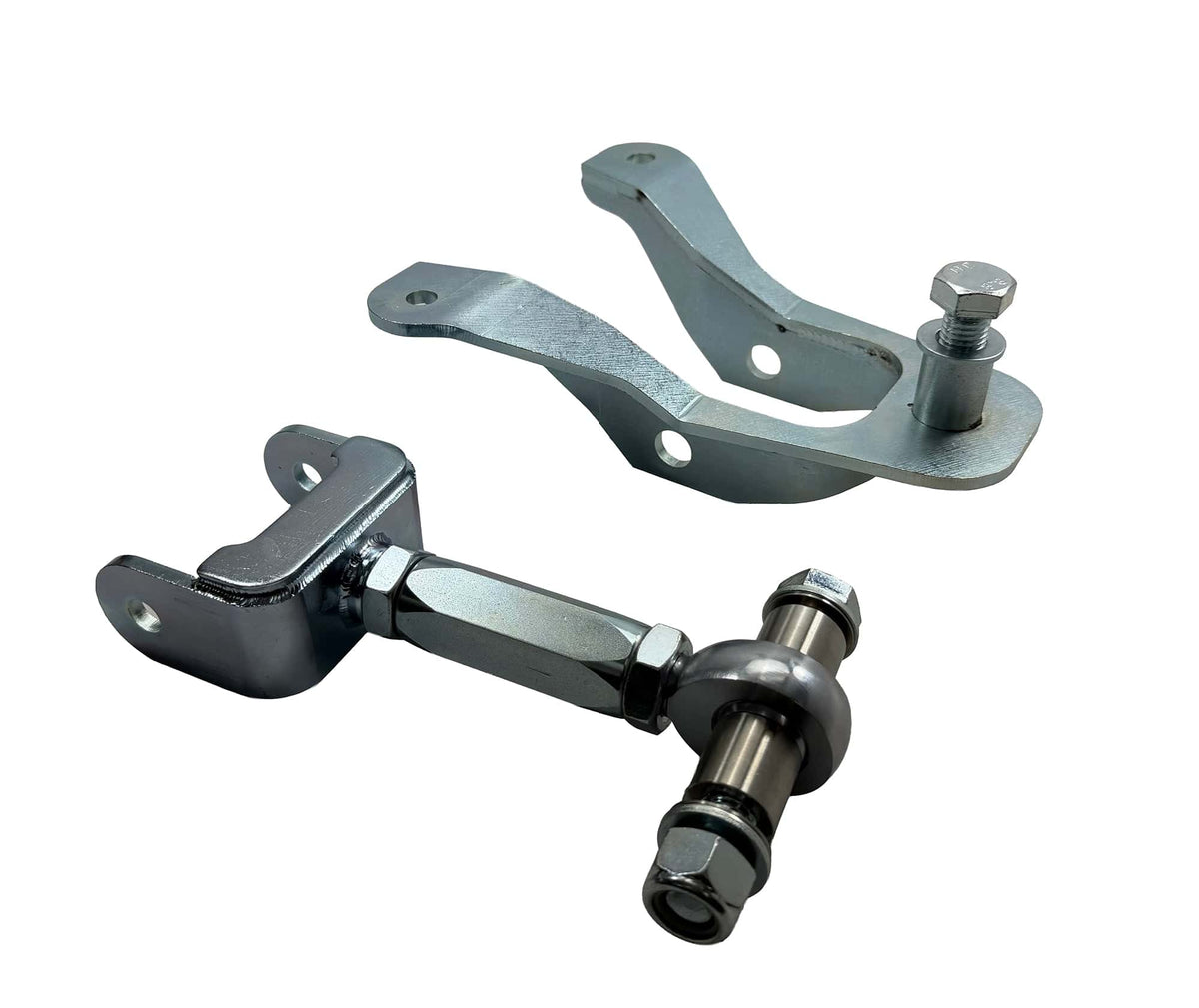

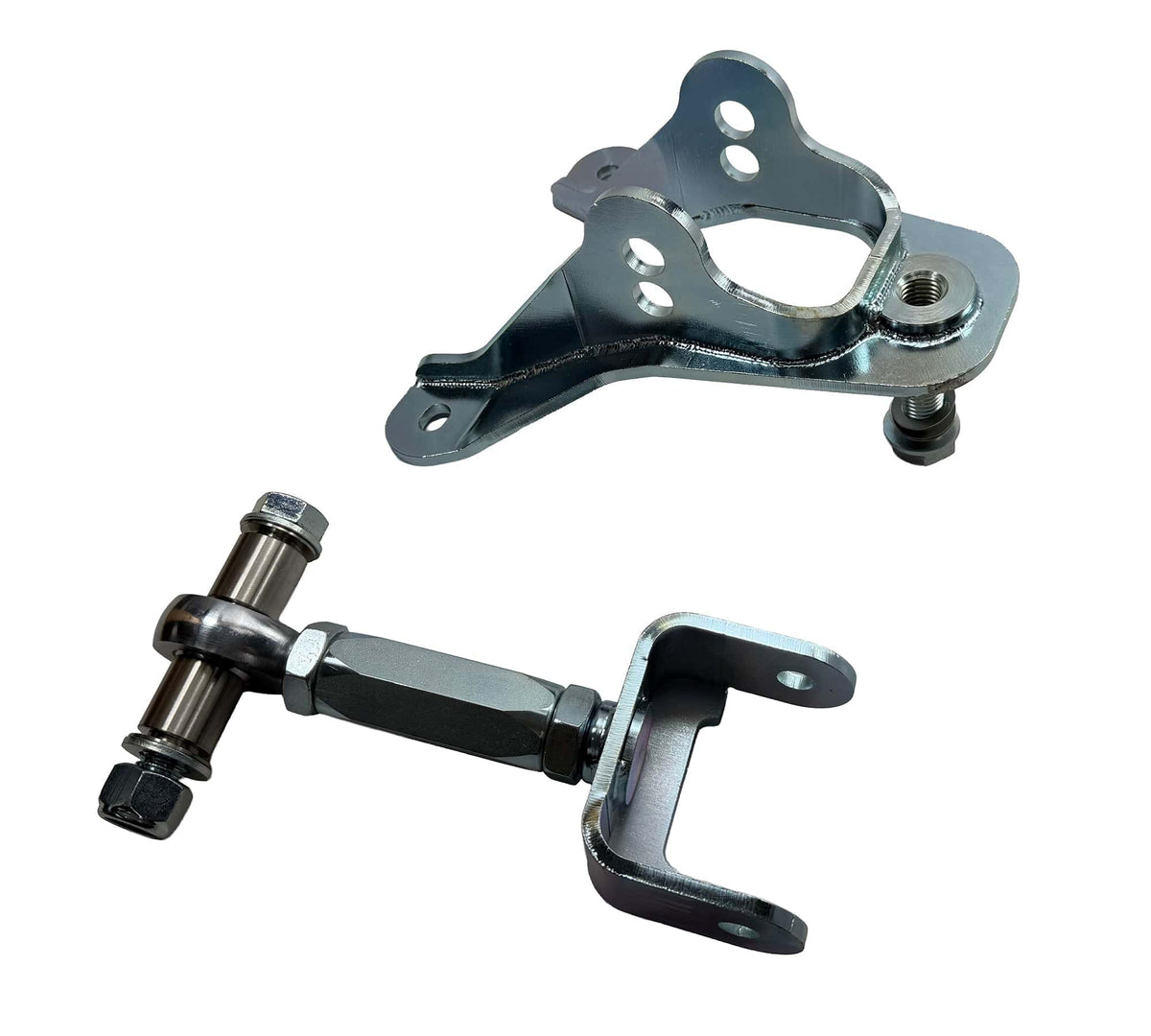

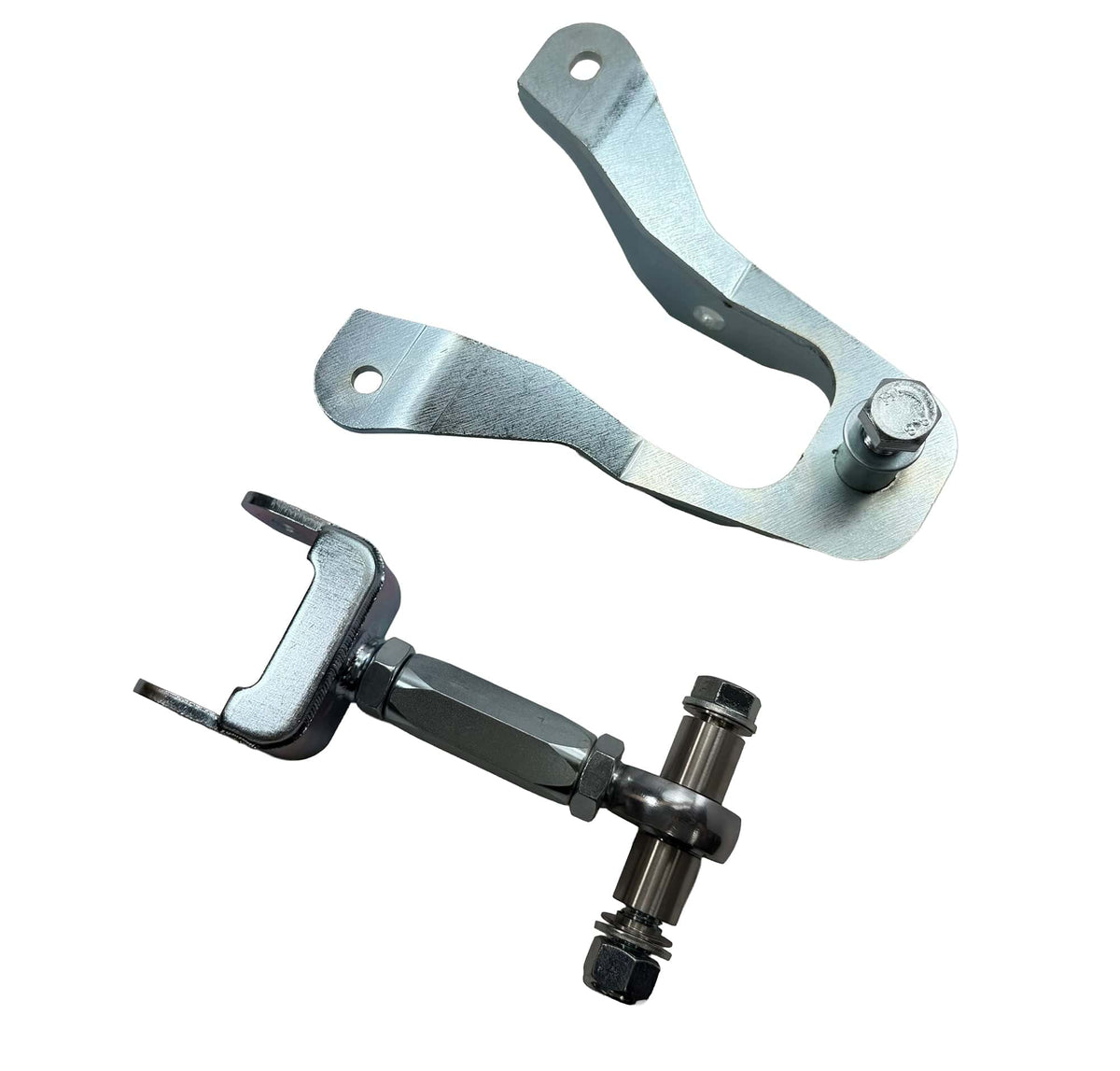

Pro-Series™ Double Adj Upper Arm & Upper Mount (fits 05-14 Mustang) UPR

     Bullet proof your rear suspension with UPR Products Pro-Series™ Double Adjustable Upper Control Arm and Upper Control Arm 3rd Link Mount for your 2005-2014 Ford Mustang. Our double adjustable control arm allows for quick and easy adjustments for dialing in your pinion angle and suspension so you get the power to the ground. From our 1/4" Steel U Bracket and Gusset to our Chrome Moly 7/8" heim joint that has 33% higher load capacity compared to our nearest competitors supposed competition upper arm. All of our Suspension Products are made with the Highest Quality materials and most expensive components. We spare no expense on our products and always stand behind them with our Lifetime warranty that no one else offers. This is an 11-14 length Control Arm and Mount, which combined can be used on 05-10 cars.



Installs in 1 to 1 1/2 hours with basic hand tools.



Upper 3rd Link Mount:

» Silver Zinc Finish
» Retains all factory mounting hardware
» Tig Welded in Billet fixtures
» Constructed from 1/4" Thick Steel
» Replaces the flimsy factory upper mount



» Silver Zinc Finish
» Tig Welded in Billet Steel Fixtures
» 1/4" Thick U Bracket and Gusset
» Heavy Duty 1 1/4" Thick Turnbuckle
» 1 1/8" Thick Steel (not Aluminum) bushings
» Includes grade 10.9 bolt/nut for 3rd Link Mount
» 7/8" Chrome Moly Teflon lined Heavy Duty Heim Joint
» 33% higher load rating than industry standard 3/4" heim joint



2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 Mustang 5.0L Coyote 4V V6 V8 GT GT500 Shelby Saleen and Roush Vehicles.







Question: Do I really need adjustable upper control arms?
Answer: It depends on what your intentions are with the car. When you lower a car the pinion angle changes, which can introduce vibrations in the driveshaft and or put the pinion angle out of it's optimal range depending on how much the car is lowered. You can also adjust pinion angle depending on the type of tire you are using at the track

Question: What does double adjustable mean?
Answer: Single adjustable arms have to be unbolted front one end in order to adjusted. Double adjustable means you can adjust the length while the arm is bolted into place.

Question: Are there any modifications needed to install the 3rd link?
Answer: None at all. This mount is a direct replacement for the factory one and will bolt right in.
