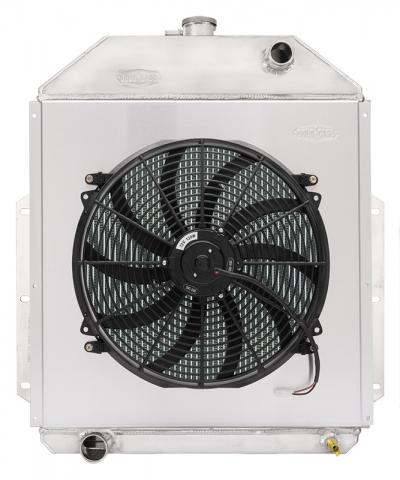

1948-1952 Ford F100 Radiator and Fan for Swaps

1948-1952 Ford F-Series Truck  Coyote Swap Aluminum Performance Radiator Module. COLD-CASE has taken the worry out of swapping the popular Coyote Engines in you F Series truck with this Coyote specific swap radiator. Along with all the great features Cold Case is known for this radiator has the correct hose connections to make your install a breeze.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• All Aluminum
• 2 rows of 1.25 inch tubes
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For auto/manual trans
•

Radiator Specs

• Core Height 21.5 inch
• Core Width 20.75 inch
• Overall Height 27.5
• Overall Width 21.75 inch
• Overall Thickness 6.75 inch
• Tubes (2) 1.25 inch Tubes
• Upper Hose 1.50 inch
• Lower Hose 1.50 inch
