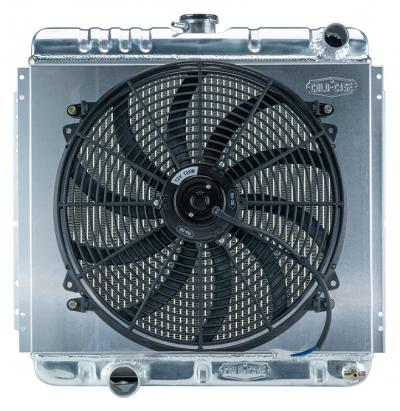

1967-1970 Mustang Radiator 20" Cold Case- With Fan and Shroud Combo

67-70 Mustang 20 Inch Aluminum Performance Radiator And 16 Inch Fan Kit. MT Cars.

Total clearance needed for this kit is 6.75"

This is the 20" version. For bigger 24" version, see FOM587 or FOM588.

Also fits:
60-63 Galaxie SB
62-69 Fairlane SB
70 Cougar
70-73 Maverick

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models.

These radiators are original appearing. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• Fan Diameter 16 Inch
• All Aluminum
• Polished OE style tanks
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For Manual trans
• Direct fitment for 67-70 Mustang 390/428
• Old Part Number: REP560ATFK

Radiator Specs

• Core Height 16.5 inch
• Core Width 19.6 inch
• Overall Height 21.5
• Overall Width 22.4 inch
• Overall Thickness 3 inch
• Tubes (2) 1.25 inch Tubes
• Upper Hose 1.50 inch
• Lower Hose 1.75 inch
