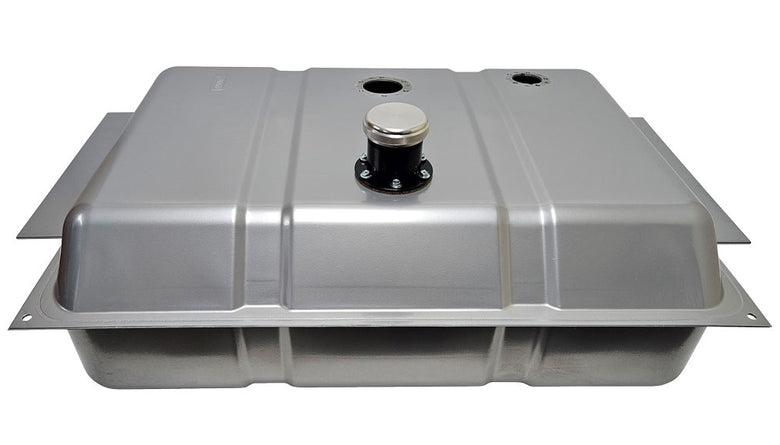

1967-1972 Ford F-Series Fuel Tank- EFI Ready

1967-1972 Ford F-Series EFI Ready Fuel Tank.  18 Gallon Capacity. Works with 5 Bolt fuel level senders and the GPA series Fuel Pump hat/pump set up.

This tank mounts under the truck bed using the flanges to bolt in place.  The tank is designed to bolt up to the bottom side of the frame rails but it can be mounted in different configurations including on top or even in-between the rails in some cases.  It is up to the installer to drill and locate the mounting holes.  Mounting hardware not included.  If installing in a stock frame the bottom leg of the rear cross member will need to be notched to fit.

• Size is 32-1/4" x 20-1/2" x 9-3/4" (including the mounting flange)
• Size is 28" x 20-1/2" x 9-3/4"  (measured without the mounting flange)
