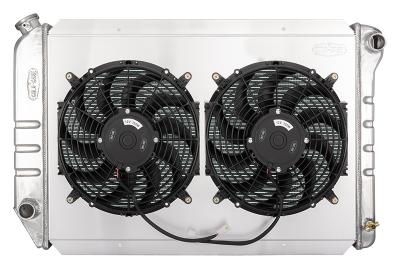

1980-1984 Ford F-series and Bronco Radiator and Fan Shroud Combo for Swaps

1980-1984 Ford F-Series Truck and Bronco Aluminum Performance Radiator.

With the popularity of the late model Coyote engine COLD-CASE now makes radiators with the correct hose connections to complete the swap. No adapters or special hoses needed, just connect and go.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators are original appearing and have the correct stamping. Once painted, you'd be hard pressed to find a difference over an original versus a COLD-CASE.

• 100 percent TIG welded
• All Aluminum
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• Manual Trans only. Use of external transmission cooler for automatic required.
• Direct fitment for 80-84 Ford Truck and 81-84 Bronco

Radiator Specs

• Core Height 18.75 Inch
• Core Width 27.5 Inch
• Overall Height 20.75 Inch
• Overall Width 33.25 Inch
• Overall Thickness 6.75 Inch
• Tubes (2) 1.25 Inch Tubes
• Upper Hose 1.50 Inch
• Lower Hose 1.50 Inch
