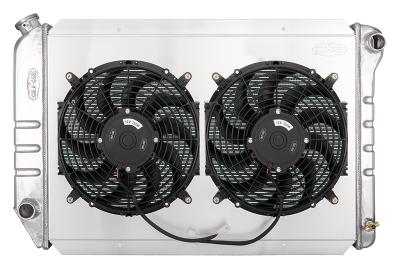

1997-2004 Ford F-series Radiator and Fan Shroud Combo for Swaps Lightning & Harley F150

1997-2003(04 heritage) Ford F150 Truck Coyote Swap Aluminum Performance Radiator.

With the popularity of the late model Coyote engine COLD-CASE now makes radiators with the correct hose connections to complete the swap. No adapters or special hoses needed, just connect and go.

These COLD-CASE radiators are Tig welded 100 percent aluminum and absolutely beautiful. Don't buy a 3 or 4 row aluminum radiator! It doesn't cool as good as these oversize 2 row models. These radiators come fully polished, ready for install.

• 100 percent TIG welded
• All Aluminum
• 16 fins per inch
• Corrugated fins that give more surface area and more thermal transfer
• Pressure tested
• For auto/maual trans
• Direct fitment for 1997-2003 F150 and 04 HD, Lightning and Heritage F150 Models

Radiator Specs

• Core Height 16.85 Inch
• Core Width 32 Inch
• Overall Height 17.15 Inch
• Overall Width 36.85 Inch pegs
• Overall Thickness 3 Inch
• Tubes (2) 1 Inch Tubes
• Upper Hose 1.5 Inch
• Lower Hose 1.5 Inch

Drop ships from Cold Case unless I show in stock. Usually ships within 3-7 business days.
