Coyote Alternator Relocation Kit 2011-2023 5.0L

Coyote Alternator Relocation bracket kit. Ideal for those tight fit chassis and applications where the alternator can not stay in the factory location. This is for Naturally Aspirated set ups only.

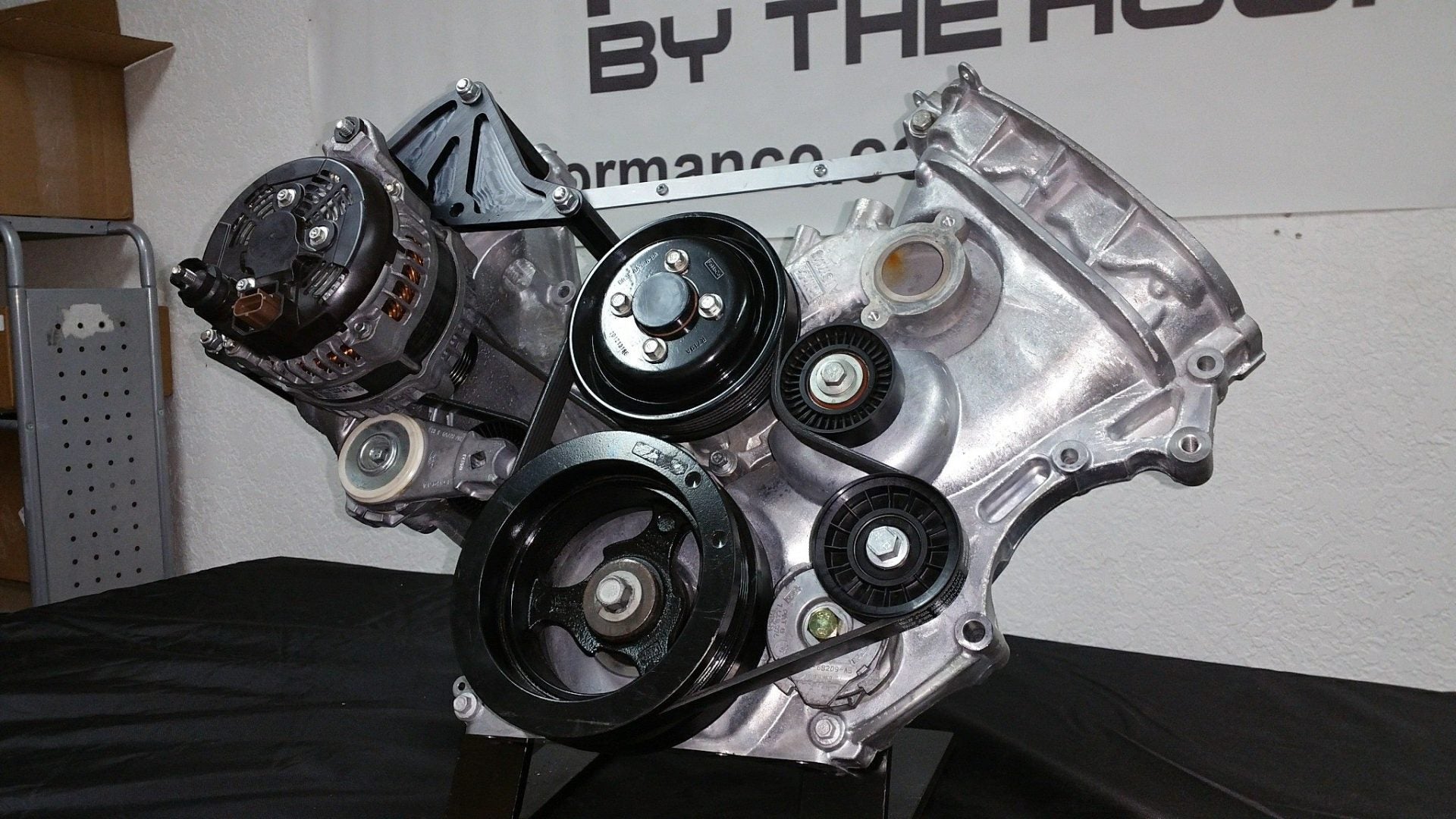

This kit works with the inner belt sheath. Belt routing does the Alternator, tensioner, and around the crank pulley back to the alternator. You can add A/C Compressor to this with the appropriate bracket and longer belt. Please inquire for your specific build.

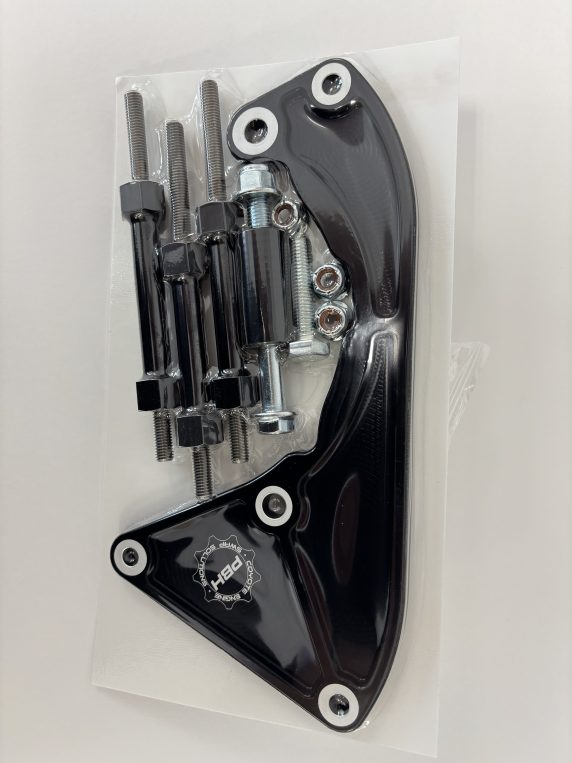

Kit includes:

Alternator Relocation Bracket, Hardware, and Stand offs

Serpentine Belt

Belt Tensioner

NOTE- Kit requires the use of a 2011-17 AUTO Gt Alternator, or any 11-26 Mustang GT alternator but will need a fixed pulley to be installed. Available separately on the website.

Will work on F-150 Engines as well from 2011-2020, but will require using a 4 rib belt, or swapping to a GT balancer that has 6/6 Rib count. (2015-2020 F150 had a 4 rib a/c and 4 rib balancer on the inner sheath).
