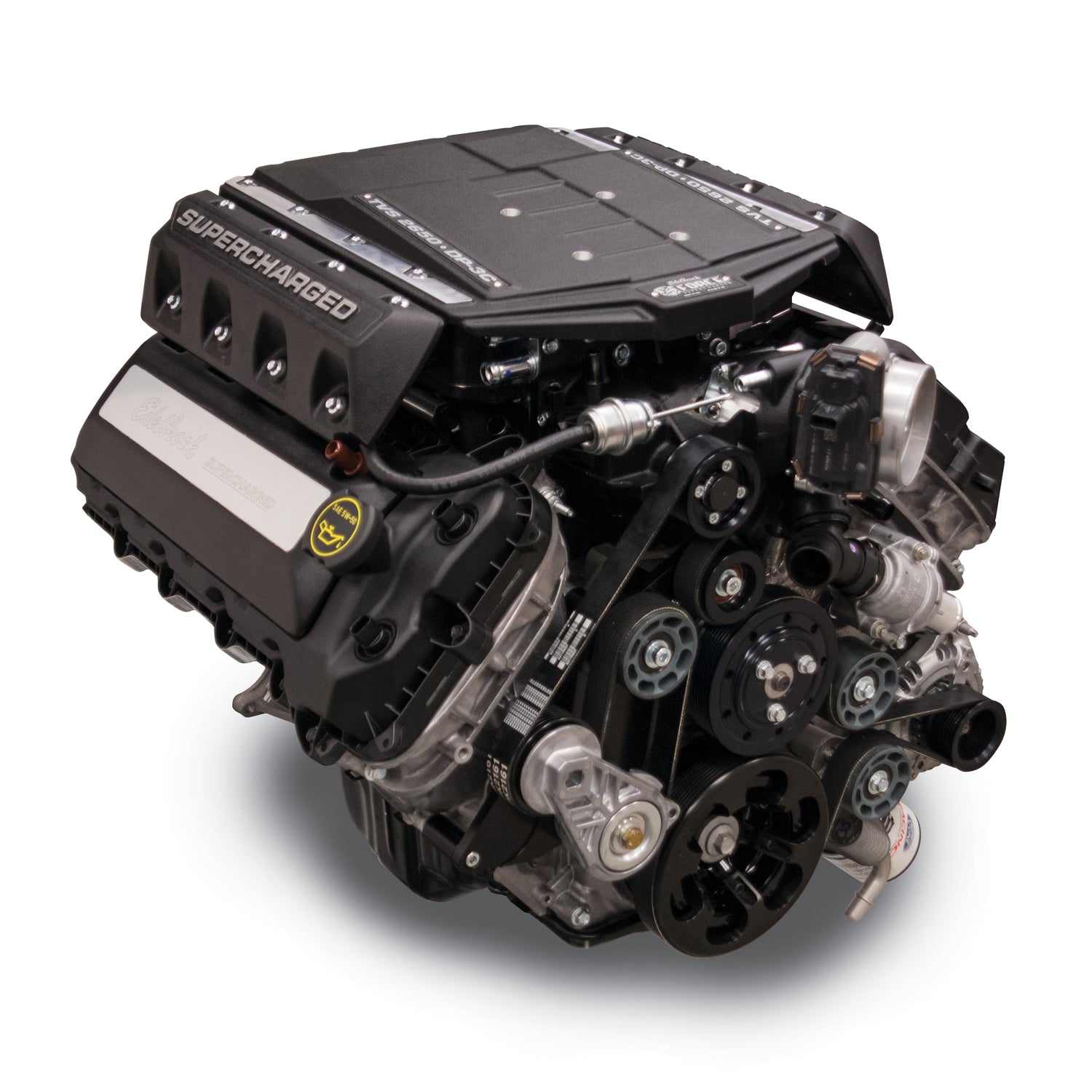

Edelbrock Supercharged Coyote Crate Engine - 46890

Edelbrock Supercharged Coyote Crate Engine. Ideal for Coyote Swaps for a turn key type application.

Details

•  Supercharged 5.0L Ford Coyote Aluminator Gen 3 crate engine
•  785 hp and 660 ft-lbs. of torque (with 93 octane fuel) at the flywheel.
•  This engine is a brand new Ford lightweight aluminium block with the forged and balanced crankshaft, forged Manley H-Beam connecting rods and Mahle forged aluminium pistons.
• Using Eaton TVS R2650 rotors.
• Also included are the essential supercharger kit components, such as the 8-rib drive belt, electric intercooler water pump, intercooler plumbing, and intercooler recovery tank.
• Fuel rails, 60 lb./hr. fuel injectors, coils, mass air flow sensor (MAFS) housing, and reusable air filters.
• Includes all front-end drive accessories: water pump, alternator, idlers, tensioners, belts, and hardware.
• Pair with universal heat exchangers for a complete installation.
• Engine Specifications: Finish: Black powder coated;
• Displacement: 5.0L (302 c.i.d.); Horsepower: 785 hp; Torque: 660 ft-lbs.;
• Compression: 9.5:1;
• Block: Ford Aluminum;
• Crankshaft: Forged; Pistons: Mahle Forged Aluminum; Rods: Manley Forged H-BeaM
• Camshafts: Stock Ford; Rocker Arms:
• Stock Ford 2-1 Ratio; Induction: Supercharger System;
• Cylinder Heads: Stock Four-Valve Aluminum w/ Boss 302 valve springs;
• Warranty: 2-year / Unlimited mileage

Crate engine  includes a supercharger, wiring harness, pre-programmed ECU, electronic throttle pedal, oxygen sensors, MAFS, OBD-II diagnostic port, air filter, fuse box, water pump, hose, alternator, belts, idlers and hardware. This engine will require an EFI-compatible fuel delivery system with a minimum flow of 90 gph at 70 PSI. A fuel pressure regulator with a boost reference is required. The top of the supercharger measures 20.83in from the crank centerline. Supplied with Edelbrock Break-In Oil. Before starting the engine, you will need to prime the oil system. Do not turn the engine over with a starter motor for priming.
