Ford Big Block 460/429 to ECOBOOST 6r80/10r80 Adapter Kit PAFO205

Allows a Ecoboost 6r80 or 10r80 to bolt to any Big Block 7.5L 460 or 429ci bolt pattern engine.

Easily convert your antiquated 3 or 4 speed to a modern 6 or 10 speed transmission and pick up those smiles per gallon and increased performance and towing capabilities with this adapter kit.

Key Features:

V6 6R80 and 10R80 transmissions are not only more affordable and widely available, but they also benefit from excellent aftermarket support. While the V6 and V8 versions share many components, there are two key differences to be aware of:

1. Bellhousing Shape – The V6 and V8 have different bellhousing profiles.
2. Rear Output Bearing – The V6 uses a heavy-duty ball bearing, while the V8 features a roller bearing. Why does this matter? The ball bearing in the V6 provides improved support due to the higher low-end torque of Ecoboost V6 engines—making it an ideal fit for performance or towing applications.

Functionally, these transmissions are nearly identical otherwise, making the V6 version a great option for many builds.

Important Fitment Note: The 6R80 and 10R80 use different torque converter spacing. Be sure to order the correct adapter kit for your transmission.

This kit works with Ford V6 Ecoboost transmissions from the 2.7L, 3.0L, 3.5L, and 3.7L engines found in:

• F-150
• Mustang
• Larger Ford/Lincoln SUVs and trucks

Kit Components:
1ea - Adapter Plate
1ea - Crank Spacer
1ea - Flexplate (Neutral or external balanced)
2ea - Dowel Pins
1ea - Dust/Inspection Cover
1ea - Block Plate
1ea - High Torque Mini Starter
1ea - Hardware Kit

Part#-PAFO205

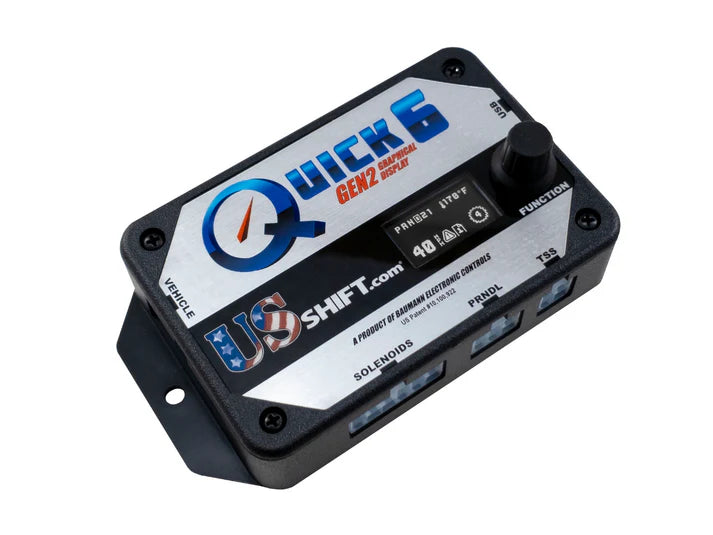

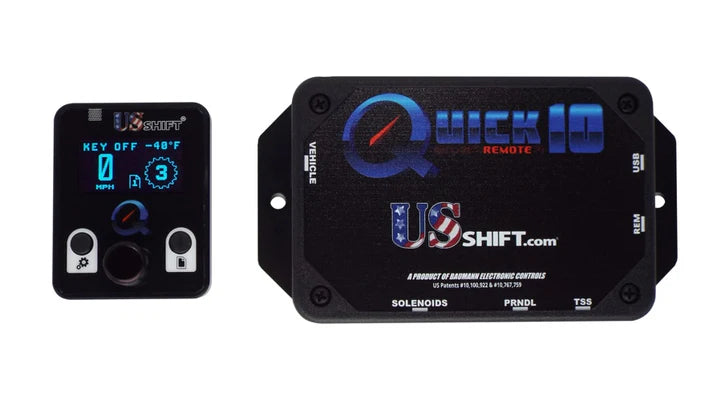

US Shift Controller Sold Separately. Can package together with drop down menu or order separately on the site. Please call or message us if you have any questions before purchase.
