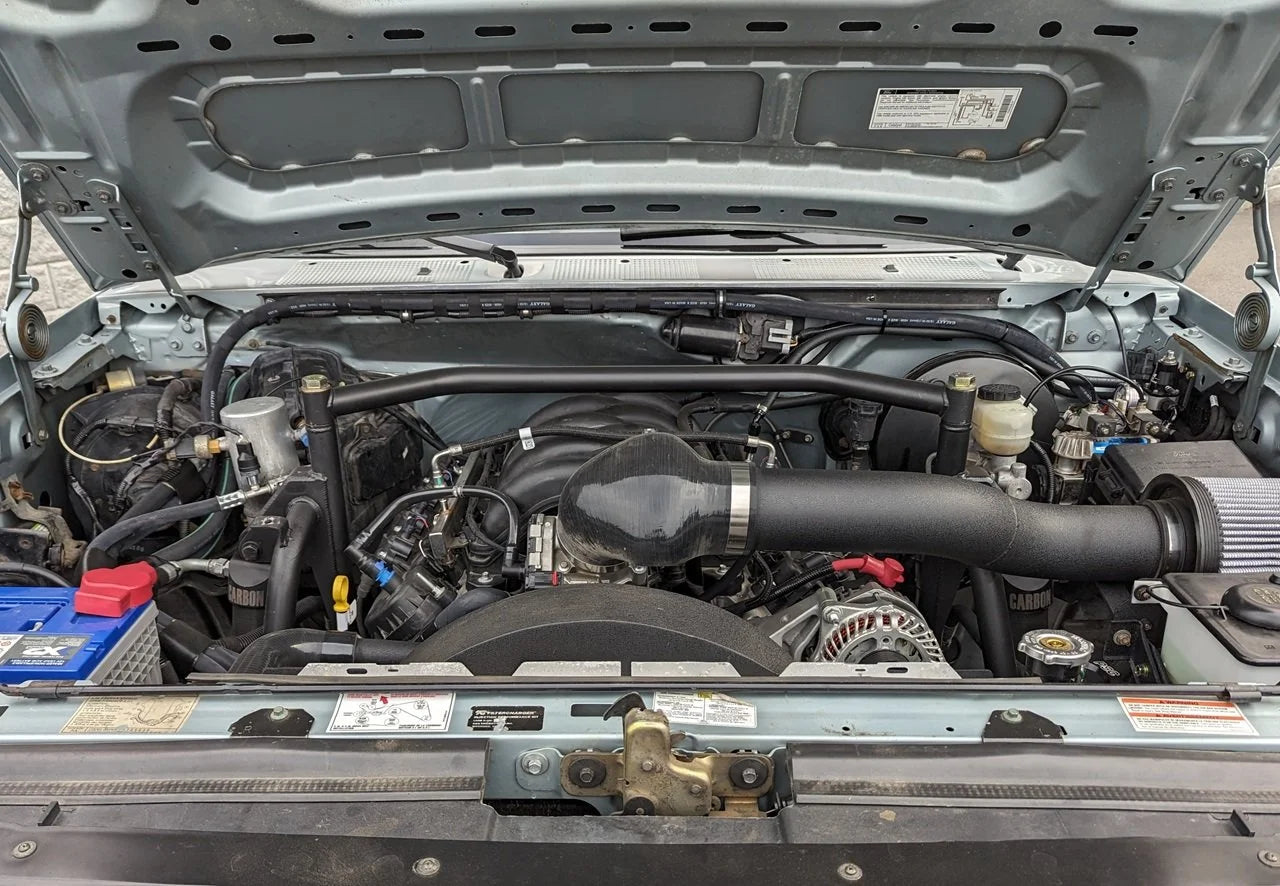

OBS Bronco and F Series Godzilla Swap Engine Mount Kit- Bolt In Style

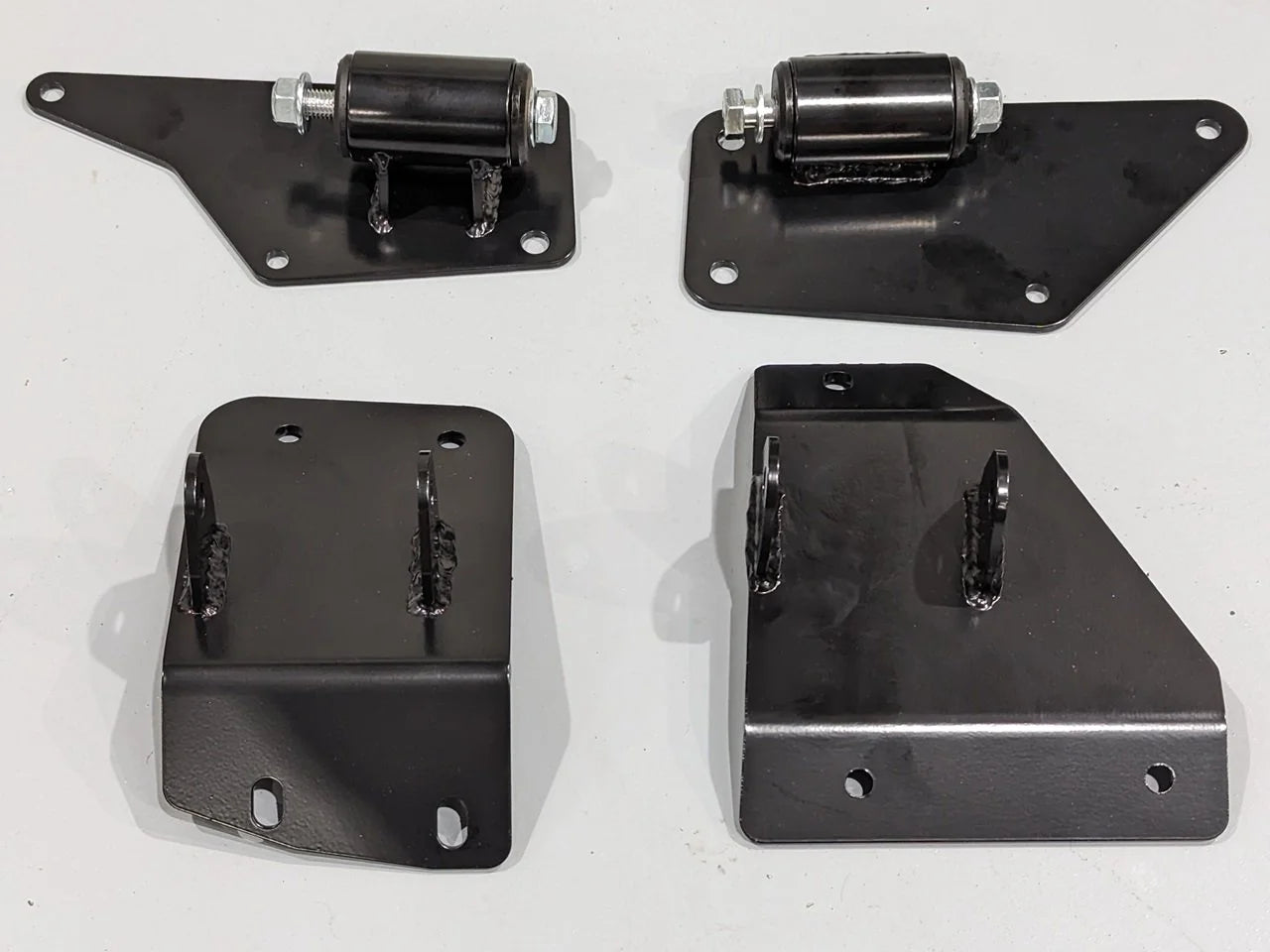

This kit will allow you to install the Ford Godzilla 7.3L engine into OBS Ford Bronco and F Series Trucks. The kit includes both the frame and engine side mounts, the frame side mounts are bolted on after removing the original factory engine mounts (grinding/drilling required).

There are many transmission combinations possible, we have used these mounts with the TR4050 manual and 6R140 automatic. This kit will work with a 6r80 and 10r80 and 10r140.  Development of transmission mounts that will pair with these engine mounts.

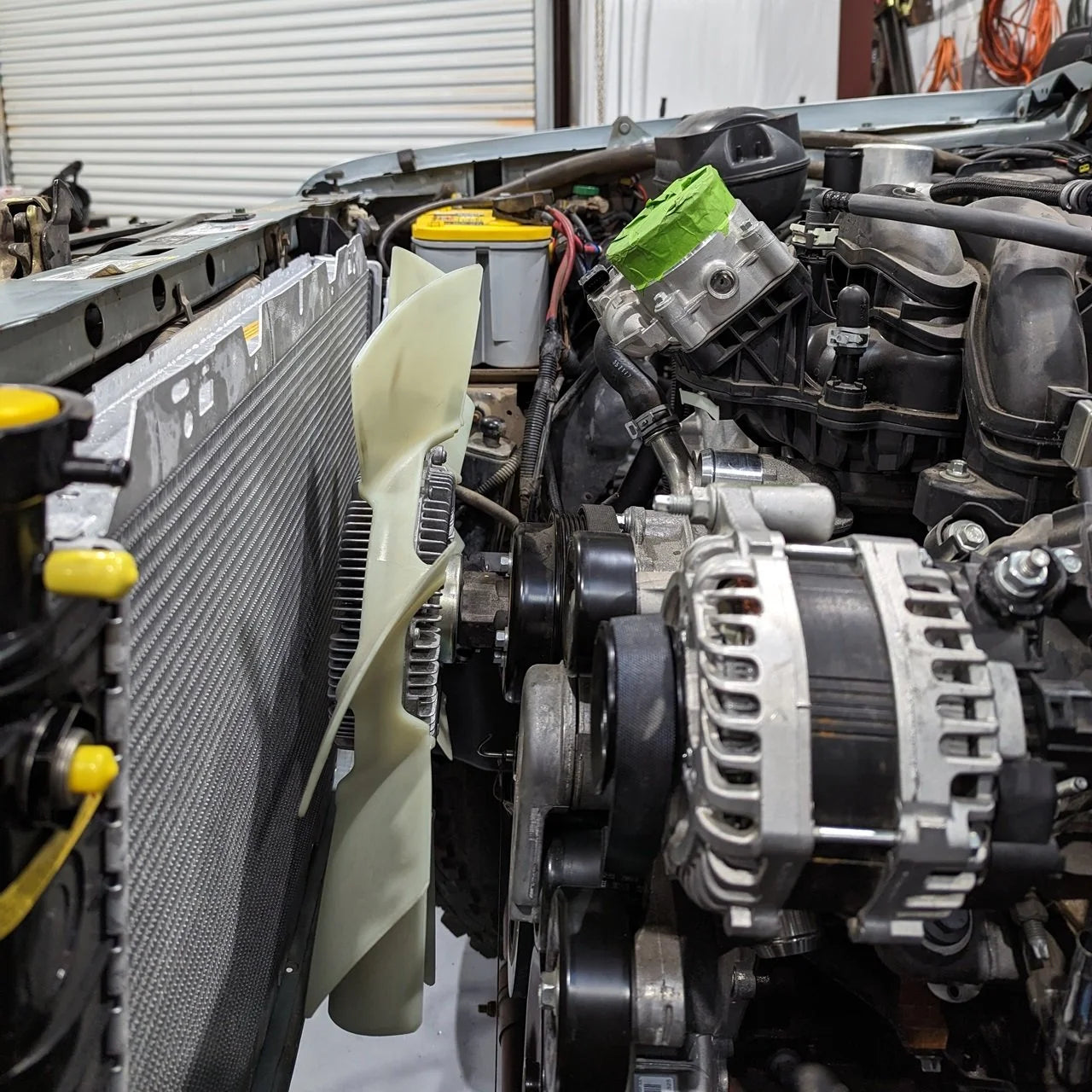

The engine position works well with the stock F250 truck/Ford Racing front accessory drive.

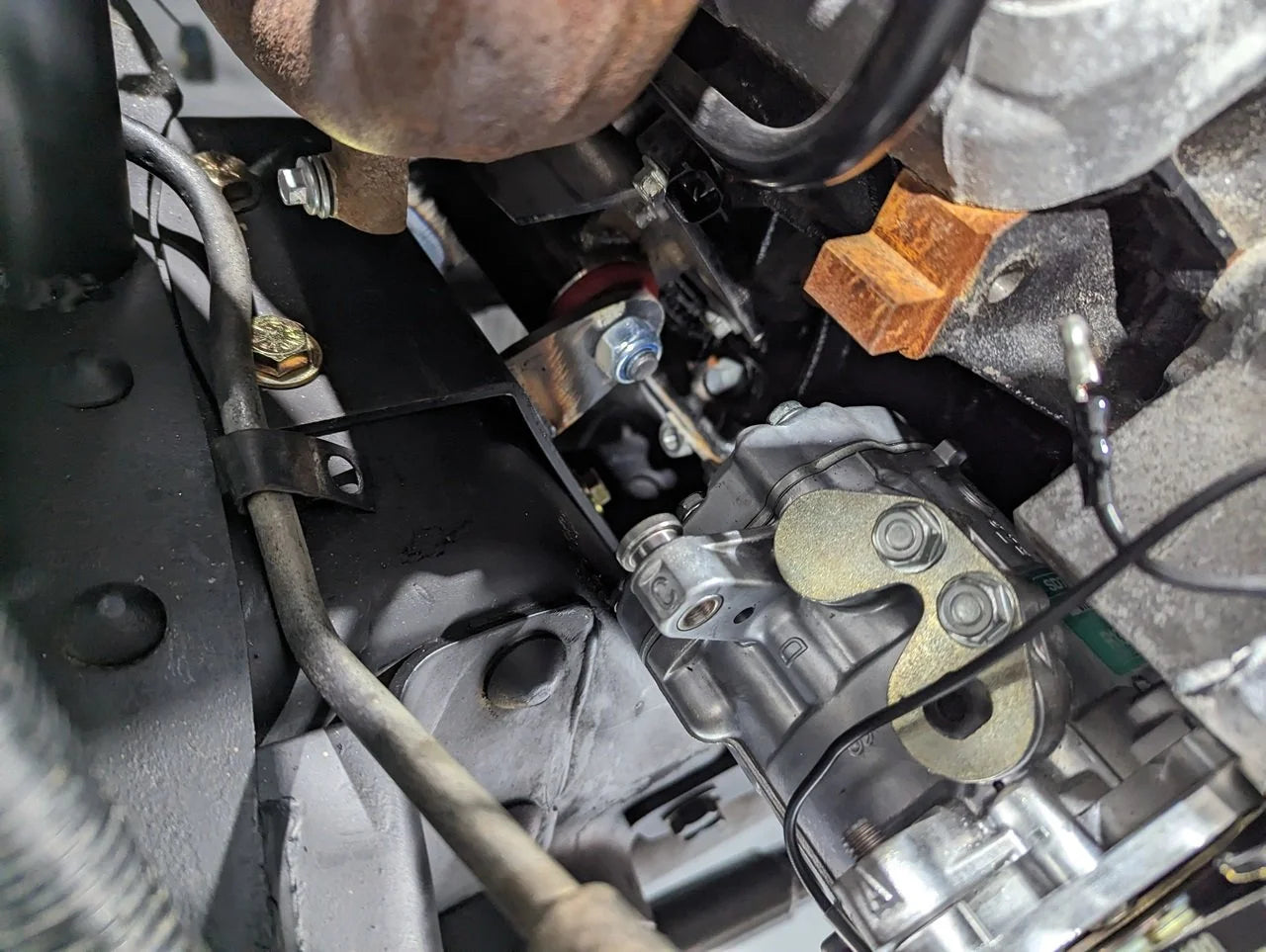

The Sanden SD7 AC compressor mount we offer will allow you to mount the AC compressor, however cutting a notch in the front crossmember is required. The kit has not been tested with the stock Godzilla AC compressor, the large size of that compressor would likely require a large cutout in the factory crossmember.

With the stock F250 intake and throttle body the engine position will necessitate a short radius 90 degree boot or Cobra Head silicone adapter at the throttle body to clear the hood
