Tremec T-56 Magnum for FORD TUET11011 2.66 First

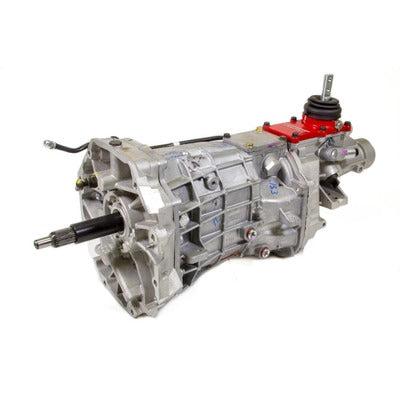

Gain an extra gear for your swap! The American Powertrain Tremec Magnum T-56 6-Speed Transmission (TUET11010) offers close ratios, smooth shifts, and a stout 700 lb-ft torque capacity. Expect serious performance that can take some punishment! Designed with a 2.66 Ratio 1st Gear and 26 Spline Input Shaft.

Features and Benefits:
- 700 lb-ft Torque Capacity
- Six Forward Gears
- 2.66 First Gear
- Simple Transmission Swap
- 26 Spline Input Shaft

The T-56 is most easily swapped in 1999-2004 Mustangs, and can be used in other model year Mustangs, F100, Ranger, Bronco, Fairlane, Galaxie, Torino, and many more with the proper accessories. A 26 spline input shaft and 31 spline output shaft are featured which may require a different clutch and driveshaft yoke depending on your setup. Most engine combinations can be handled thanks to a 700 lb-ft torque capacity rating. The T-56 has provisions for both mechanical and electronic speedometers.

Specifications:
Gear Ratios
1st - 2.66
2nd - 1.78
3rd - 1.30
4th - 1.00
5th - 0.80
6th - 0.63

Tech Tip: Fits SBF, 4.6L SOHC/DOHC and 5.0L Ti-VCT engines. SBF 302/351 engines require Quicktime bellhousing part # 8031 and modular 4.6L/5.0L/5.4L engines require bellhousing part # 8080.

Please Note: May require shorter driveshaft, modified crossmember/transmission mounts and other minor modifications.
