Tremec
Tremec TKX Transmission 5-Speed for Ford 26 Spline Input Shaft TCET17765
Tremec TKX Transmission 5-Speed for Ford 26 Spline Input Shaft TCET17765
Regular price
$2,895.00 USD
Regular price
Sale price
$2,895.00 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

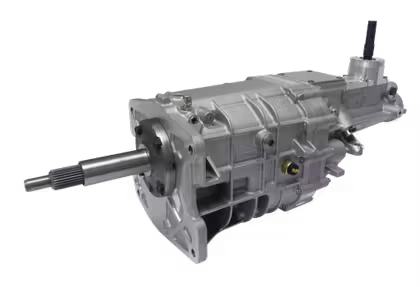

Tremec TKX 5 Speed Manual Transmission. Part#TCET17765 for 26 Spline input shaft.
Tremec reworked the internals of the famed TKO to make these very responsive to High RPM use and shifts. Great alternative to go behind a Coyote or Godzilla for this reason in addition to its smaller overall size in comparison to the t-56 Magnum.
10 Spline version available, but this listing is for the 26 Spline input shaft option for greater holding power and durability.
SPECS:
- TCEE17774 - 35 teeth, 2.87
- TCEE17783 - 32 teeth, 1.89
- TCEE17808 - 26 teeth, 1.28
- TCFM17409 - 23 teeth, 1.00
- TCEE17806 - 49 teeth, 0.68
- Reverse Sliding 2.56 gear ratio
- Input Splines - 26
- Output Splines - 31
The TKX has a rounded case and is streamlined to the max to fit inside tight transmission tunnels with no cutting in most applications. The shifter plate has a low profile and the shifter is nice and compact.
- Torque Capacity - 600 lb•ft
- Shift Capacity - 7,500 rpms
- Output Splines - 31
- Shifter Positions - 3
- Speedo Output - Mechanical and Electronic
