Welder Series Coyote and Voodoo Engine Mounts. For Universal fitment in F100, Mustang, Cougar, Fairlane, Falcon, and many other applications.

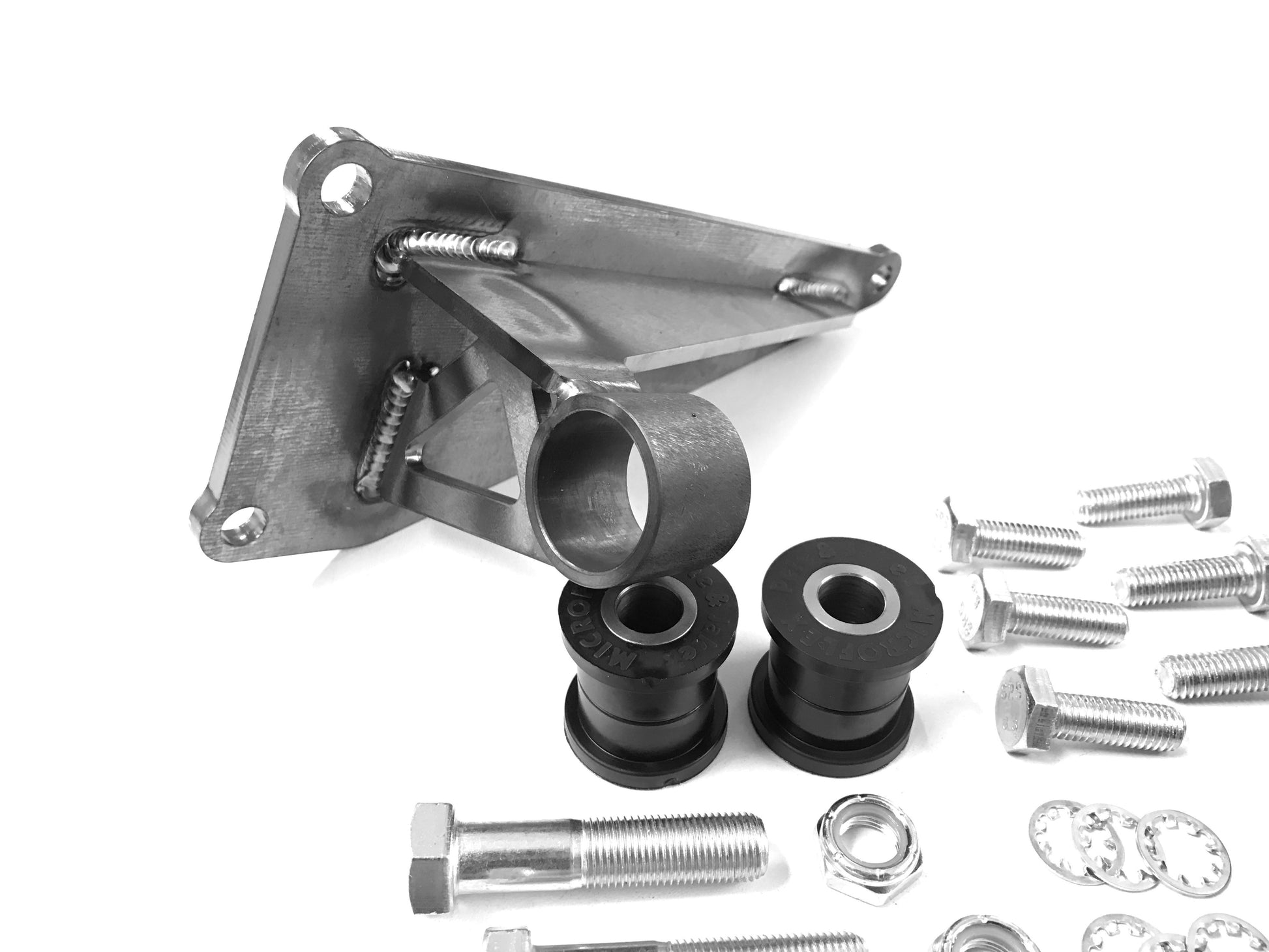

This Ford 4.6L/5.4L/5.0L/5.8L/5.2L engine mount kit can be used in frames of varying widths, from a narrow T-bucket to F100 pickups. The plate design is easy to assemble, strong, and looks great. Gussets add extra support. Urethane bushings absorb vibrations. Zinc plated metric bolts and lock washers are included.
The 3/16" frame plates will need to be trimmed to fit your frame after you establish the engine location. Filler plates are available to create a third side on the frame plates. See related parts below, or add them when you click the "add to cart" button.

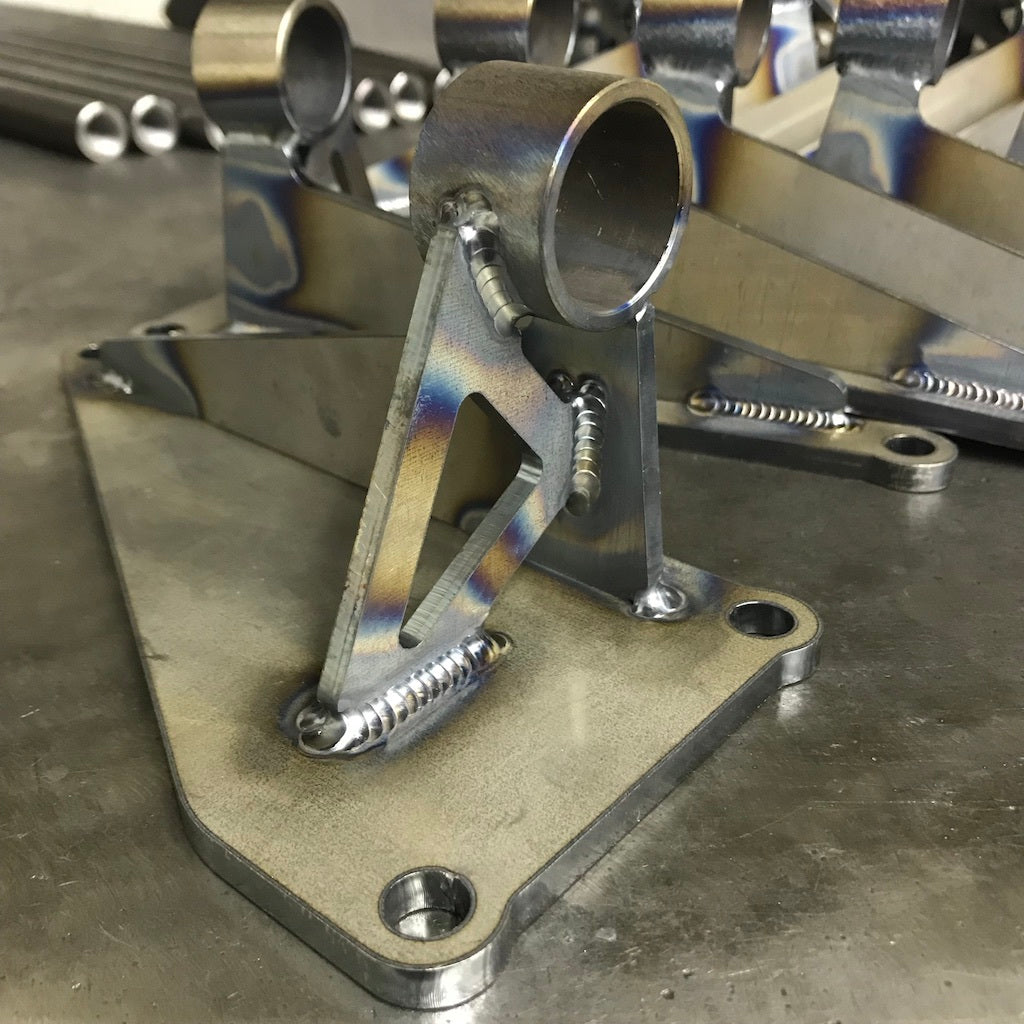

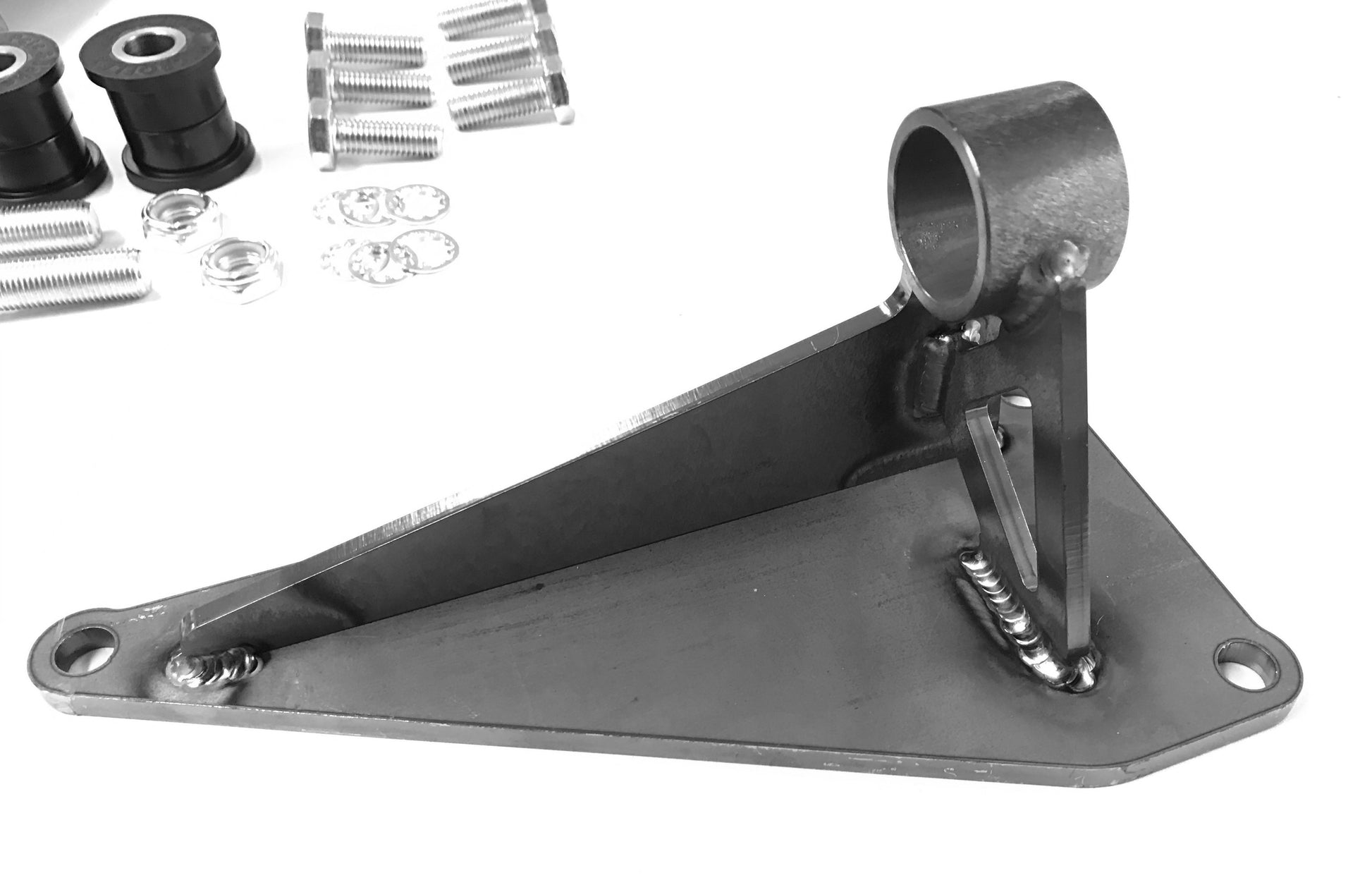

1/4" main plate and 3/16" gussets. Uses our large 1-3/4" wide urethane bushings.
3" from mounting surface to the center of the bushing.
Will fit the 5.4 engines which use a 3 bolt mounting pattern.
